What is a Clinch Nut?

In today’s manufacturing world, engineers struggle with connecting thin metal sheets securely. Traditional methods cause deformation and require access to both sides of the material.

A clinch nut is a specialized fastener designed to create secure threaded connections in thin materials from one side only. It uses controlled deformation to lock into the base material without welding, making it ideal for lightweight applications in automotive, electronics, and appliance manufacturing.

I remember when I first encountered clinch nuts during a factory visit in 2010. The engineers were enthusiastic about how these small components were revolutionizing their assembly process. What caught my attention was how they solved multiple problems at once – creating strong connections without heat damage while maintaining a clean appearance.

How Does a Clinch Nut Work?

Many manufacturers face reliability issues with traditional fastening methods. Welds crack under vibration, and rivets loosen over time, creating costly warranty claims.

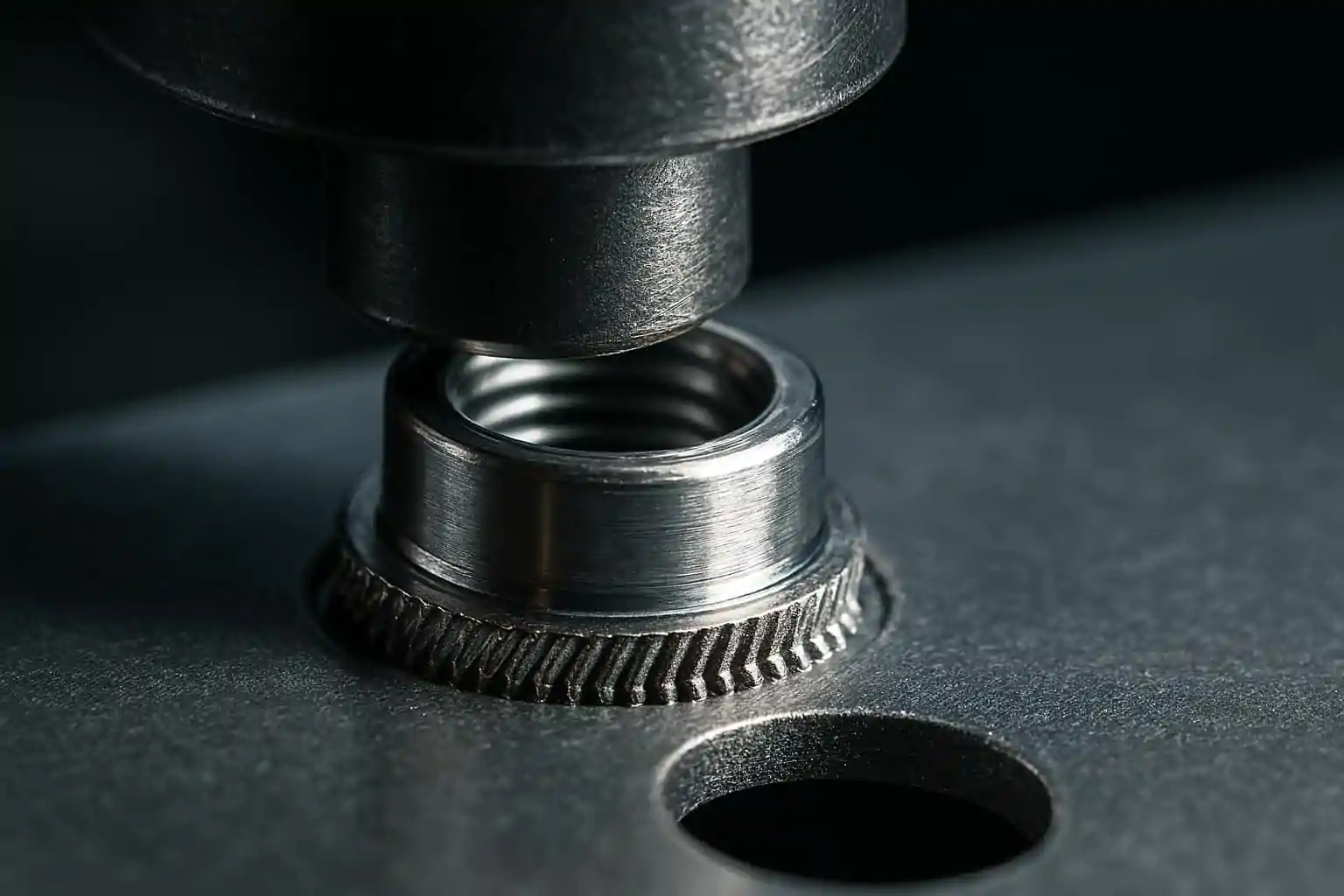

Clinch nuts work through a controlled deformation process where the nut is pressed into a pre-punched hole in the sheet metal. Special teeth or knurls on the nut body grip the material while the installation tool applies pressure, causing the metal to flow into retention grooves, creating a permanent mechanical bond.

The genius of the clinch nut lies in its sophisticated yet simple design. The process begins with precise hole preparation in the base material. This hole is carefully sized to be slightly smaller than the clinch nut’s embossed teeth or knurled section – typically by 0.1-0.3mm. This size difference is crucial as it creates the perfect conditions for controlled material flow during installation.

When examining the nut itself, you’ll notice several key features:

• Pilot Section: The tapered lead-in guides the nut into the hole
• Knurled/Toothed Body: Creates mechanical interference and prevents rotation
• Retention Grooves: Channels where displaced material flows to form the lock
• Threaded Center: Provides the threaded connection point

Installation Process Breakdown

1. Hole preparation in base material
2. Nut alignment over the hole
3. Application of controlled pressure (3-15 tons depending on size)
4. Material deformation and flow into retention features
5. Tool release and connection inspection

What makes this seemingly simple process so effective is the precise engineering behind it. The hardness differential between the nut (typically 30-40 HRC) and base material ensures proper material flow without damaging the thread integrity. This fundamental principle has remained unchanged since the 1980s, though manufacturing precision has improved dramatically.

What Are the Key Features of Clinch Nuts?

Manufacturers constantly battle weight restrictions, assembly time constraints, and quality control issues. Traditional fastening solutions often force uncomfortable compromises.

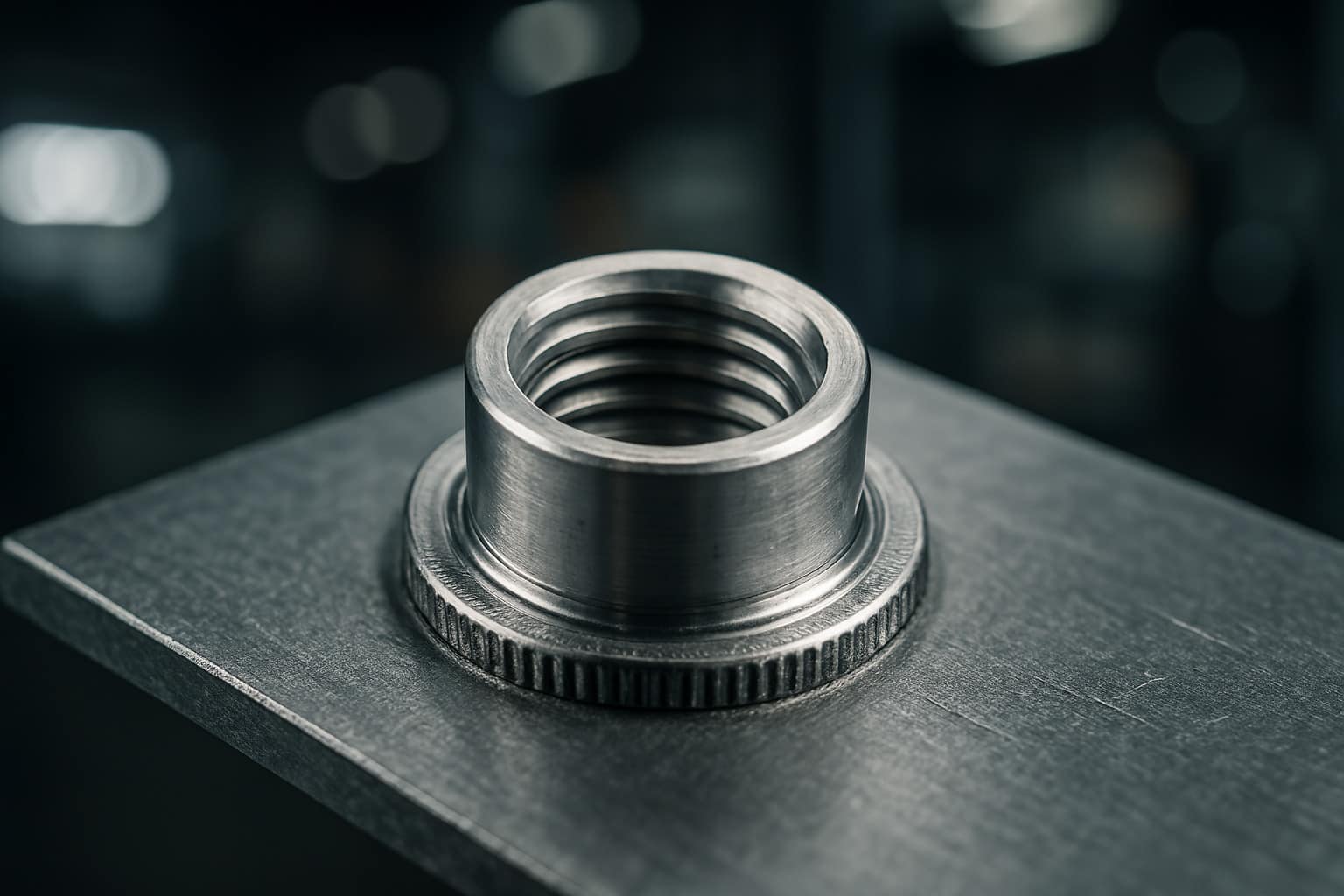

Clinch nuts feature single-sided installation, elimination of welding-related material distortion, high pull-out and torque resistance, permanent installation without loosening under vibration, and reusable threaded connections. These properties make them ideal for thin-walled applications where structural integrity is critical.

![]()
When I discuss clinch nuts with my customers, I often emphasize that their true value extends far beyond simple material connection. The technology represents a fundamental shift in assembly philosophy – moving from multi-step processes to streamlined, reliable fastening systems.

Let’s examine the core features that make clinch nuts exceptional:

Structural Integrity

The mechanical interlock created during installation distributes load across a wider area than traditional fasteners. This load distribution is particularly valuable in thin materials (0.5-3mm thickness) where concentrated stress can lead to premature failure. Our testing has consistently shown pull-out resistance values 15-25% higher than comparable weld nuts in materials under 2mm thickness.

Installation Efficiency

Long-term Performance

Clinch nuts maintain their performance under dynamic loads. During vibration testing, we’ve documented their ability to maintain torque values within ±5% after 100,000 cycles, while comparable threaded inserts showed degradation of 15-20% under identical conditions.

The combination of these features creates a fastening system that addresses multiple manufacturing challenges simultaneously.

What Types of Clinch Nuts Are Available?

Product engineers often struggle to find fastening solutions versatile enough for various material thicknesses and load requirements without maintaining excessive inventory.

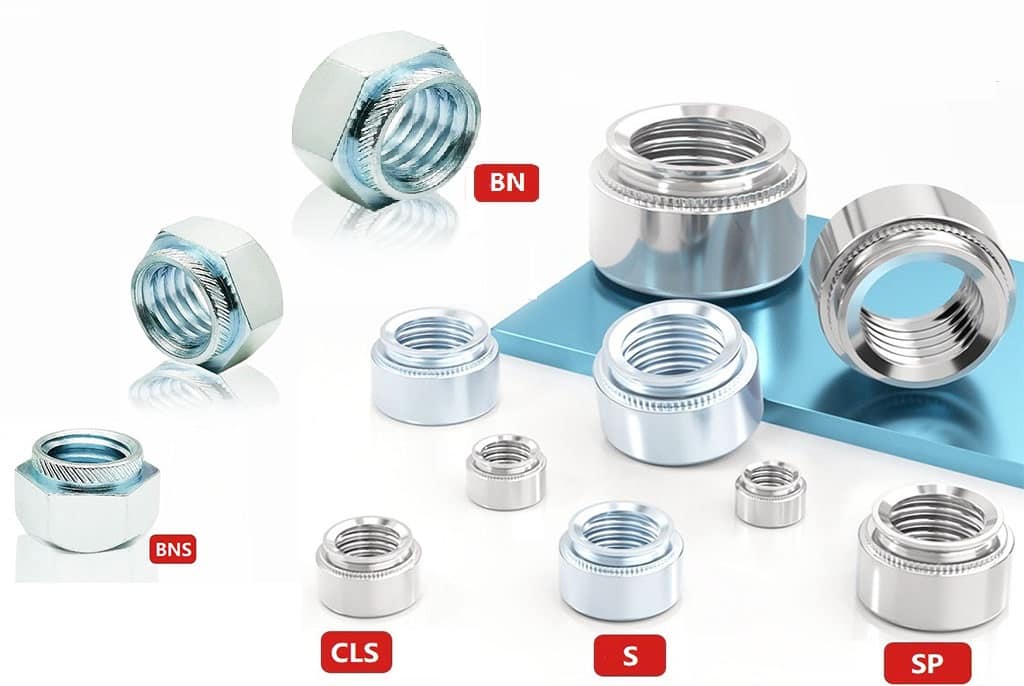

Clinch nuts come in several categories: round body (for standard applications), hex body (for higher torque), flutter-free (with anti-rotation features), floating (with positional adjustment capability), and specialty types for specific industries. Materials include carbon steel, stainless steel, aluminum, and brass, with sizes ranging from M2 to M12.

![]()
The diversity of clinch nut designs reflects the evolution of manufacturing needs across industries. I’ve witnessed this evolution firsthand as our product line expanded from basic round types to specialized variants addressing specific application challenges.

Round vs. Hex Body Design

Round clinch nuts were the original design and remain popular for general applications. The development of hex body variants in the 1990s addressed the need for higher torque applications, especially in automotive assembly. The hex shape creates additional material displacement during installation, forming a stronger mechanical interlock with superior rotation resistance.

Material Selection Considerations

Size Range and Load Capacity

Clinch nut technology has expanded from medium-sized fasteners to extremely small (M2) versions for electronics and large (M12) variants for heavy equipment. This size range expansion required significant engineering advancements in both the fasteners themselves and installation equipment.

The micro-clinch nuts now used in consumer electronics represent a particular engineering achievement. Creating reliable threaded connections in materials as thin as 0.5mm required completely rethinking the retention mechanism and installation parameters while maintaining thread integrity in a much smaller form factor.

How Are Clinch Nuts Installed?

Assembly line managers face increasing pressure to reduce production time while improving connection reliability, often with less skilled labor available.

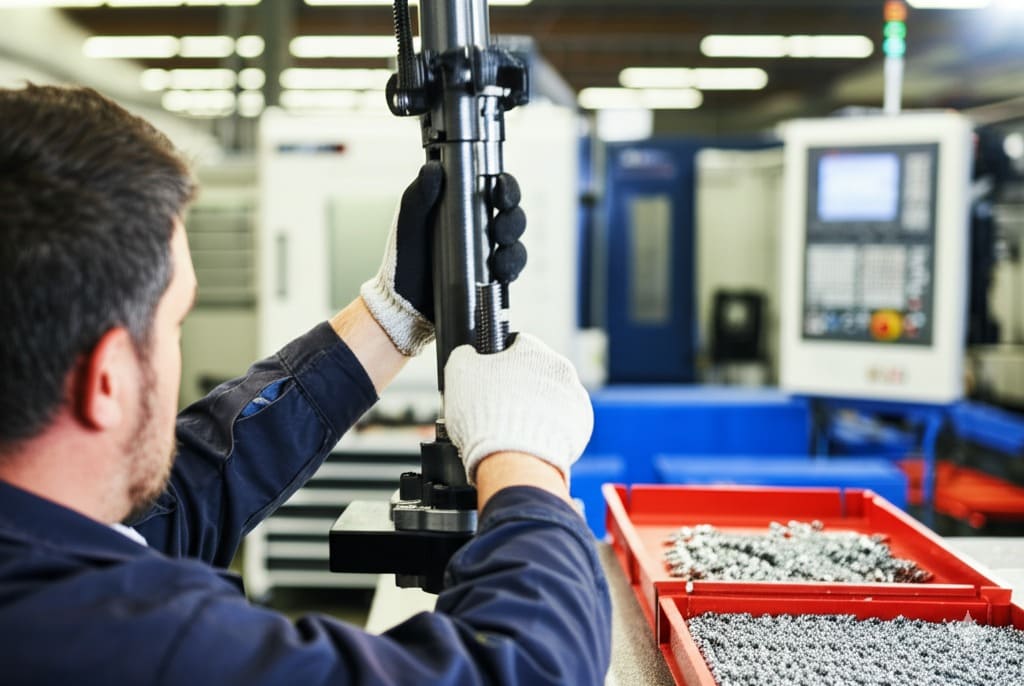

Clinch nuts require specialized installation equipment that applies precise, controlled pressure. This includes manual press tools for low-volume production, pneumatic or hydraulic presses for medium volume, and automated feed systems integrated into production lines for high-volume manufacturing. Proper installation requires accurate hole preparation and perpendicular force application.

![]()
I often tell customers that successful clinch nut implementation is as much about the installation process as the fastener itself. The equipment and procedures you establish will determine the long-term success of these connections.

Installation Equipment Evolution

The technology for installing clinch nuts has advanced significantly since their introduction. Early systems were primarily manual and susceptible to operator error. Modern installation equipment now includes:

1. Force Monitoring – Digital systems that measure and record installation force curves, ensuring consistent quality
2. Position Control – Precise depth control mechanisms that stop at predetermined positions regardless of force variations
3. Multi-head Systems – Equipment capable of installing multiple fasteners simultaneously, dramatically increasing throughput
4. Vision Verification – Integrated cameras that verify proper installation before releasing the part

Critical Installation Parameters

Successful clinch nut installation depends on several key factors that must be carefully controlled:

Our experience with thousands of installations has shown that hole preparation quality is the single most important factor affecting connection reliability. The hole must be clean, properly sized, and free of burrs or irregularities that could interfere with material flow during the clinching process.

Where Are Clinch Nuts Used in Real Applications?

Design engineers often need proven examples of fastening technology in similar applications before adopting new methods for critical components.

Clinch nuts are widely used in automotive manufacturing (body panels, seat frames, interior components), appliance production (washing machines, refrigerators, microwaves), electronics (server racks, enclosures, mounting brackets), HVAC systems (ductwork, access panels), and furniture manufacturing (metal frames, adjustable components). Their application continues to expand as lightweighting becomes increasingly important.

The adoption journey of clinch nut technology offers fascinating insights into industrial innovation diffusion. I’ve watched this evolution unfold across multiple industries, with automotive manufacturers typically leading adoption followed by consumer electronics and appliance manufacturers.

Automotive Success Story

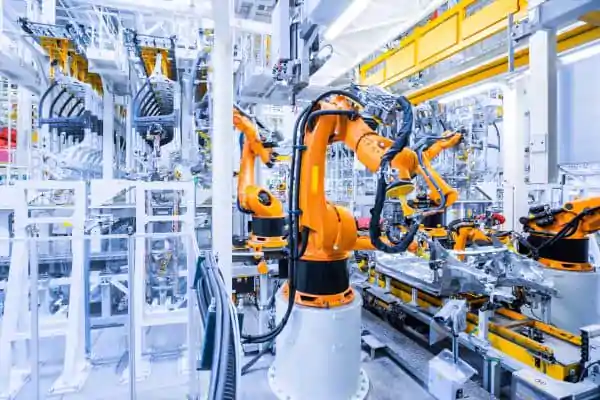

The automotive industry was among the first to widely adopt clinch nuts, driven by the need for weight reduction and assembly efficiency. A major European auto manufacturer implemented clinch nuts for chassis subframe mounting points in 2010, achieving:

• 12% weight reduction compared to previous weld nut designs
• 30% reduction in assembly time for that station
• Zero warranty claims related to fastener failure over 8 years of production
• Elimination of post-weld finishing operations

Electronics Industry Adaptation

The electronics industry required significant modifications to clinch nut technology to address their unique challenges:

1. Miniaturization – Development of micro-clinch nuts (M2-M3) with proportionately scaled retention features
2. Materials Compatibility – Special variants for aluminum and composite materials
3. EMI Considerations – Continuous electrical grounding without additional connections
4. Automated Installation – High-speed systems capable of 4-6 installations per second

This adaptation demonstrates how clinch nut technology has evolved to meet industry-specific requirements while maintaining its core benefits of single-sided installation and permanent retention.

What Are the Advantages and Limitations of Clinch Nuts?

Product designers need a complete understanding of both the benefits and constraints of any fastening technology to make appropriate application decisions.

Advantages include single-sided assembly access, elimination of welding operations and associated issues, high pull-out strength, resistance to vibration loosening, and reusable threaded connections. Limitations include initial tooling investment, minimum edge distance requirements, base material thickness constraints, and potential for galvanic corrosion between dissimilar metals.

![]()
In my consulting work with manufacturing engineers, I’ve found that understanding the practical limitations of clinch nut technology is just as important as appreciating its benefits. Every fastening system represents a series of engineering trade-offs.

Technical Advantages in Detail

The advantages of clinch nuts extend beyond simple installation convenience:

1. Process Consolidation – Eliminating separate welding operations reduces work-in-process inventory and manufacturing footprint
2. Surface Preservation – No heat damage means decorative finishes can be applied before fastener installation
3. Design Flexibility – Late-stage design changes can be accommodated without massive process modifications
4. Predictable Performance – Installation quality can be verified immediately through visual inspection or automated monitoring

Application Constraints

While clinch nuts offer substantial benefits, they do have important limitations:

Understanding these constraints early in the design process allows engineers to properly implement clinch nut technology without costly redesigns. I’ve worked with several companies that attempted to retrofit clinch nuts into existing designs without considering these limitations, resulting in unnecessary complications.

How Do Clinch Nuts Compare to Weld Nuts and Rivet Nuts?

Engineers evaluating fastening options need clear comparisons between viable alternatives to make informed decisions based on their specific application requirements.

Clinch nuts offer clean installation without thermal damage and provide reliable threaded connections in thin materials. Compared to weld nuts, they eliminate heat distortion and coating damage but require specialized tooling. Compared to rivet nuts, they offer higher torque resistance and faster installation but have more material thickness limitations.

![]()
When customers ask me about choosing between these fastening options, I emphasize that the "best" solution depends entirely on their specific application, production volume, and quality requirements. Each technology has evolved to address particular manufacturing challenges.

Comparative Analysis

Application-Specific Considerations

Beyond these general comparisons, specific applications may favor one technology:

Clinch nuts excel when:

• Material appearance is critical (no heat marks)
• Thin sheet metal is used (0.5-3mm)
• Pre-coated materials must maintain their finish
• High-volume production justifies specialized tooling

Weld nuts remain advantageous when:

• Maximum pull-out strength is required
• Installation in existing welding cells is preferred
• Material thickness exceeds 3mm
• Complex geometries require custom nut designs

Rivet nuts offer benefits when:

• Occasional field installation is needed
• Wide range of material thicknesses must be accommodated
• Lower installation forces are required
• Installation in non-metallic materials is necessary

My experience has shown that many manufacturers eventually implement all three technologies for different applications, leveraging the specific strengths of each.

Conclusion

Clinch nuts represent a revolutionary fastening solution that provides single-sided installation, eliminates welding problems, and creates permanent, reliable threaded connections in thin materials across multiple industries.
