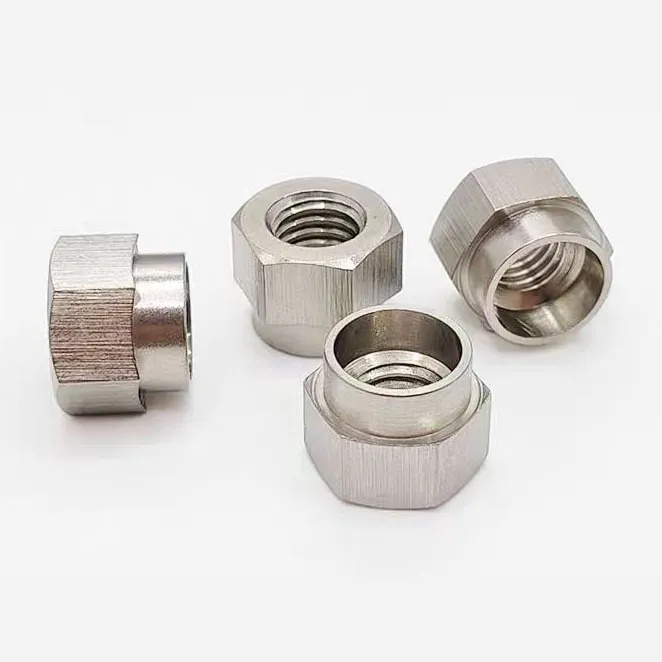

Self-Clinching Nuts Flare-In Nuts NZS are a type of fastener used to create a permanent, secure threaded connection in thin sheet materials like metal, plastic, or composite materials.
Key Features of Self-Clinching Nuts Flare-In Nuts NZS:
*The flare-in design of these nuts refers to the way the material around the nut is deformed during installation. When the nut is pressed into a pre-drilled hole, the nut body deforms in a way that flanges outwards (flaring the material around the nut), creating a permanent, secure hold;
*Self-Clinching Nuts Flare-In Nuts NZS are made from stainless steel;
*Installation is done by inserting the flare-in nut into a pre-drilled hole in the material and using a press tool or rivet nut gun to press the nut into place,As the nut is compressed, the material around the nut flattens and flares to form a secure bond, locking the nut in place permanently;
*Self-Clinching Nuts Flare-In Nuts NZS are widely used in electronics, automotive, aerospace, and general manufacturing.
Part NO. | Thread Code | Thread Pitch | Shank Code | Shank Max | Nominal Hole Size | Nominal Diameter | Material Grade | Surface Finish | Quick Quote |
M3 | 0.5mm | 1.2 | 1.2mm | 4.98mm | 6mm | 304 Stainless Steel | Plain, Passivated | ||
M3 | 0.5mm | 1.5 | 1.5mm | 4.98mm | 6mm | 304 Stainless Steel | Plain, Passivated | ||
M3 | 0.5mm | 2.0 | 2.0mm | 4.98mm | 6mm | 304 Stainless Steel | Plain, Passivated | ||
M4 | 0.7mm | 1.2 | 1.2mm | 5.98mm | 7mm | 304 Stainless Steel | Plain, Passivated | ||
M4 | 0.7mm | 1.5 | 1.5mm | 5.98mm | 7mm | 304 Stainless Steel | Plain, Passivated | ||
M4 | 0.7mm | 2.0 | 2.0mm | 5.98mm | 7mm | 304 Stainless Steel | Plain, Passivated | ||
M5 | 0.8mm | 2.0 | 2.0mm | 7.98mm | 9mm | 304 Stainless Steel | Plain, Passivated | ||
M5 | 0.8mm | 2.5 | 2.5mm | 7.98mm | 9mm | 304 Stainless Steel | Plain, Passivated | ||
M5 | 0.8mm | 3.0 | 3.0mm | 7.98mm | 9mm | 304 Stainless Steel | Plain, Passivated | ||
M6 | 1.0mm | 1.5 | 1.5mm | 8.98mm | 10mm | 304 Stainless Steel | Plain, Passivated | ||
M6 | 1.0mm | 2.0 | 2.0mm | 8.98mm | 10mm | 304 Stainless Steel | Plain, Passivated | ||
M6 | 1.0mm | 2.5 | 2.5mm | 8.98mm | 10mm | 304 Stainless Steel | Plain, Passivated | ||
M6 | 1.0mm | 3.0 | 3.0mm | 8.98mm | 10mm | 304 Stainless Steel | Plain, Passivated | ||
M8 | 1.25mm | 1.5 | 1.5mm | 10.98mm | 12.7mm | 304 Stainless Steel | Plain, Passivated | ||
M8 | 1.25mm | 2.0 | 2.0mm | 10.98mm | 12.7mm | 304 Stainless Steel | Plain, Passivated | ||
M8 | 1.25mm | 2.5 | 2.5mm | 10.98mm | 12.7mm | 304 Stainless Steel | Plain, Passivated | ||
M8 | 1.25mm | 3.0 | 3.0mm | 10.98mm | 12.7mm | 304 Stainless Steel | Plain, Passivated |
