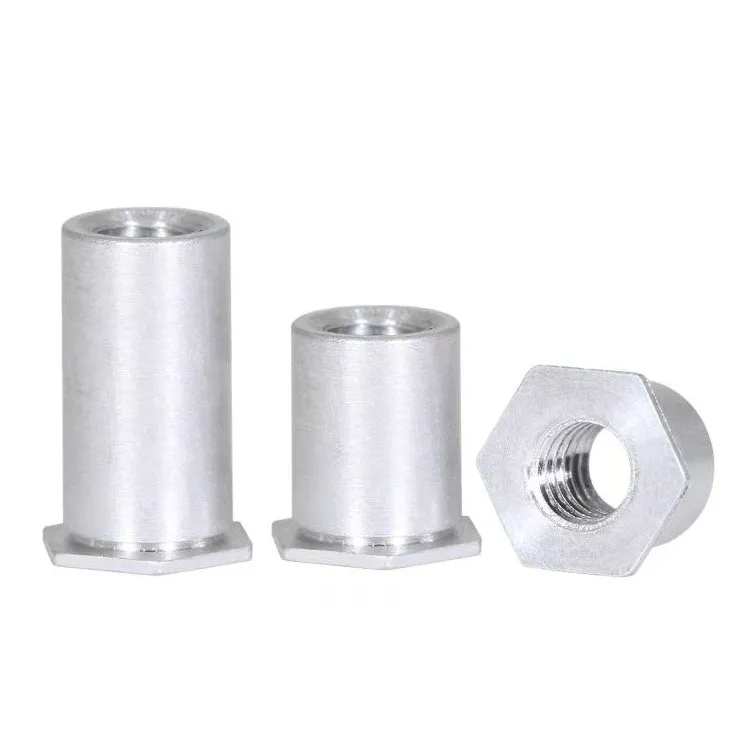

Self-clinching standoffs are designed to be pressed into a thin metal sheet to provide a secure and permanent threaded hole. These standoffs are commonly used when you need to mount components to a surface but don’t want to use additional hardware like nuts or bolts. They "clinched" into the sheet metal during installation, forming a permanent bond.
Key Features:
*Design: Self-clinching standoffs feature a threaded section and a flange that helps hold the standoff in place once it's pressed into a hole in a sheet metal panel. The standoff has a slightly oversized body that deforms during installation to grip the material;
*Material: Made from stainless steel;
*Installation: Self-clinching standoffs can be installed by pressing them into pre-punched holes in a metal sheet. Once installed, the flange ensures that the standoff stays securely in place, while the threaded portion is available for attaching components;
*Applications: Often used in electronics, enclosures, chassis, and circuit boards to provide mounting points for components like screws or bolts.
Part NO. | Thread Code | Thread Pitch | Length Code | Min. Sheet Thickness | Hole Size in Sheet | Nom Cap Diameter | Material Grade | Surface Finish | Quick Quote |
M3 | 0.5mm | 3 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 4 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 6 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 8 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 10 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 12 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 14 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 16 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 18 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 20 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 25 | 1.0mm | 4.22mm | 4.8mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 3 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 4 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 6 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 8 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 10 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 12 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 14 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 16 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 18 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 20 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 22 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 25 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 3 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 4 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 6 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 8 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 10 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 12 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 14 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 16 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 18 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 20 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 22 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 25 | 1.27mm | 7.14mm | 7.9mm | 303/304 Stainless Steel | Passivated/Plain |
