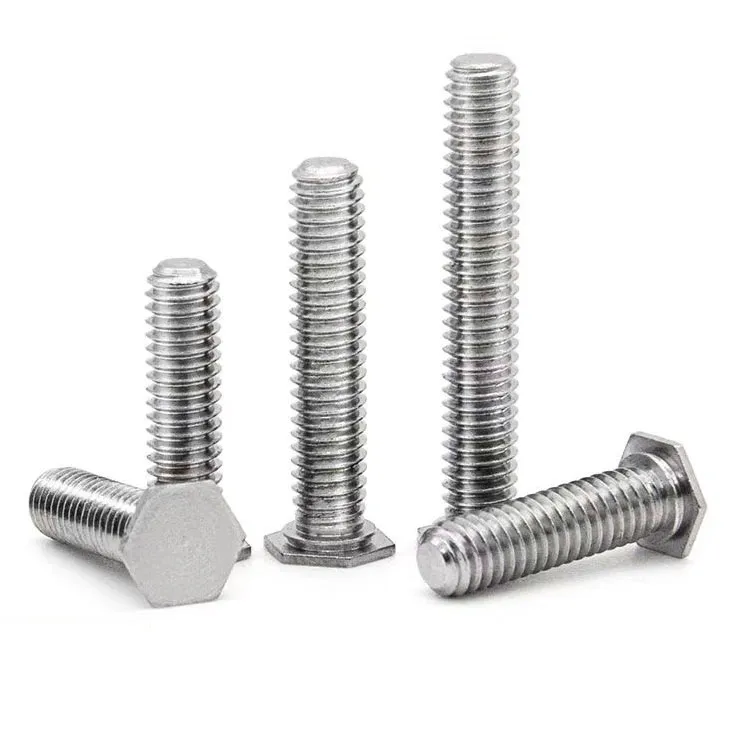

Self-Clinching Studs Hexagon Head NFHS are a type of fastener used for creating a strong, permanent threaded connection in thin sheet materials, such as metal, plastics, or composites, where access to the backside of the material is not possible.
Key Features of Self-Clinching Studs Hexagon Head NFHS:
*Self-Clinching Studs Hexagon Head NFHS are designed to be installed into a pre-punched hole in sheet metal (or other materials). During installation, the stud is pressed into the material, causing its body to deform and "clinching" the stud securely in place. Once installed, the stud cannot be removed or pulled out easily;
*Self-Clinching Studs Hexagon Head NFHS made from stainless steel, often used for more demanding applications requiring resistance to rust and corrosion;
*Installation of self-clinching studs typically requires a press tool or rivet nut gun. The stud is inserted into a hole in the material and then pressed into place, causing the body to deform and grip the material.
*They are commonly used in industries like electronics, automotive, aerospace, and manufacturing for applications requiring secure mounting points or connections.
Part NO. | Thread Code | Thread Pitch | Thread Length | Min. Sheet Thickness | Hole Size in Sheet | Nom Cap Diameter | Material Grade | Surface Finish | Quick Quote |
M3 | 0.5mm | 6mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 8mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 10mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 12mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 15mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 18mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 20mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M3 | 0.5mm | 25mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 6mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 8mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 10mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 12mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 15mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 18mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 20mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 25mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M4 | 0.7mm | 30mm | 1.0mm | 4.8mm | 6mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 8mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 10mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 12mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 15mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 18mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 20mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 25mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M5 | 0.8mm | 30mm | 1.2mm | 5mm | 6.35mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 10mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 12mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 15mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 18mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 20mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 25mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain | ||
M6 | 1.0mm | 30mm | 1.6mm | 6mm | 7mm | 304/316 Stainless Steel | Passivated/Plain |
