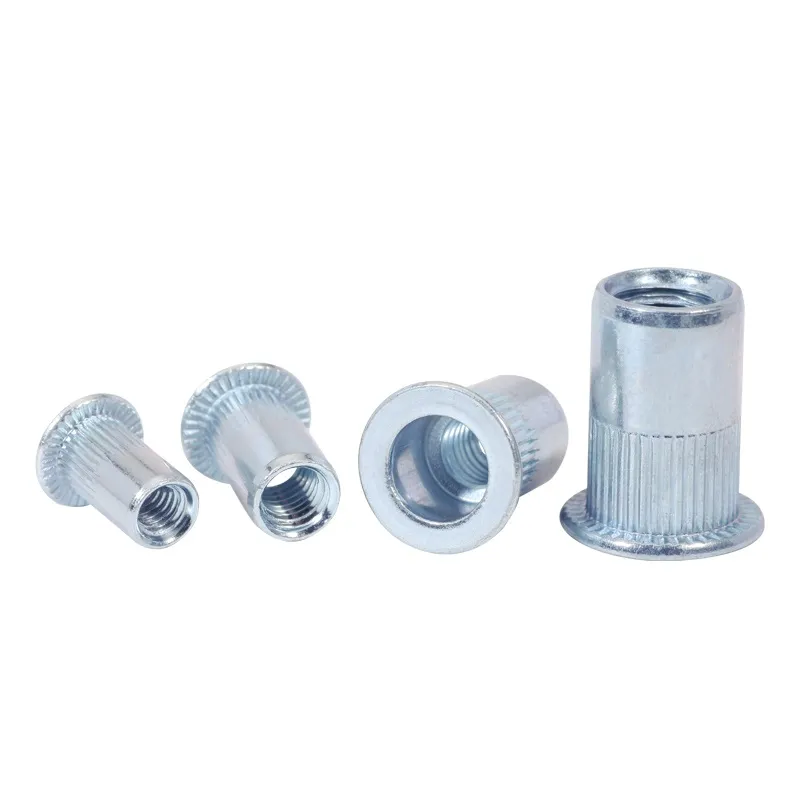

Rivet Nuts Flat Head Knurled Body FH-KB-CS are a specific type of rivet nut that combines a flat head, knurled body, and is made from carbon steel (CS).These features make them suitable for a variety of applications where a secure, permanent threaded insert is needed in thin sheet materials.
Key Features of Rivet Nuts Flat Head Knurled Body FH-KB-CS:
*The flat head design ensures the rivet nut sits flush or slightly below the surface of the material once installed;
*The knurled body features a textured, ridged surface that increases friction between the rivet nut and the material during installation;
*Rivet Nuts Flat Head Knurled Body FH-KB-CS made from carbon steel;
*Rivet Nuts Flat Head Knurled Body FH-KB-CS commonly used in electronics, automotive, aerospace, and general manufacturing, these rivet nuts provide strong, reliable, and clean fastening solutions in various industries.
Part NO. | Thread Code | Grip Range-t | Length | Hole Size in Sheet | Nom Cap Diameter | Material Grade | Surface Finish | Quick Quote |
M3 | 0.5-1.5mm | 10mm | 6.0mm | 8.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M4 | 0.5-2.0mm | 10.5mm | 6.0mm | 9.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M4 | 2.0-3.5mm | 12mm | 6.0mm | 9.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M5 | 0.5-2.5mm | 13mm | 7.0mm | 10.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M5 | 2.5-5.0mm | 16.5mm | 7.0mm | 10.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M6 | 0.5-3.0mm | 15.5mm | 9.0mm | 12.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M6 | 3.0-5.5mm | 19.5mm | 9.0mm | 12.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M8 | 1.0-3.5mm | 18.5mm | 11.0mm | 14.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M8 | 3.5-6.0mm | 21.0mm | 11.0mm | 14.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M10 | 1.0-4.0mm | 21.5mm | 13.0mm | 17.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M10 | 4.0-6.5mm | 24.0mm | 13.0mm | 17.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M12 | 1.0-4.0mm | 22.0mm | 15.0mm | 18.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M12 | 4.0-6.5mm | 25.0mm | 15.0mm | 18.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow |
