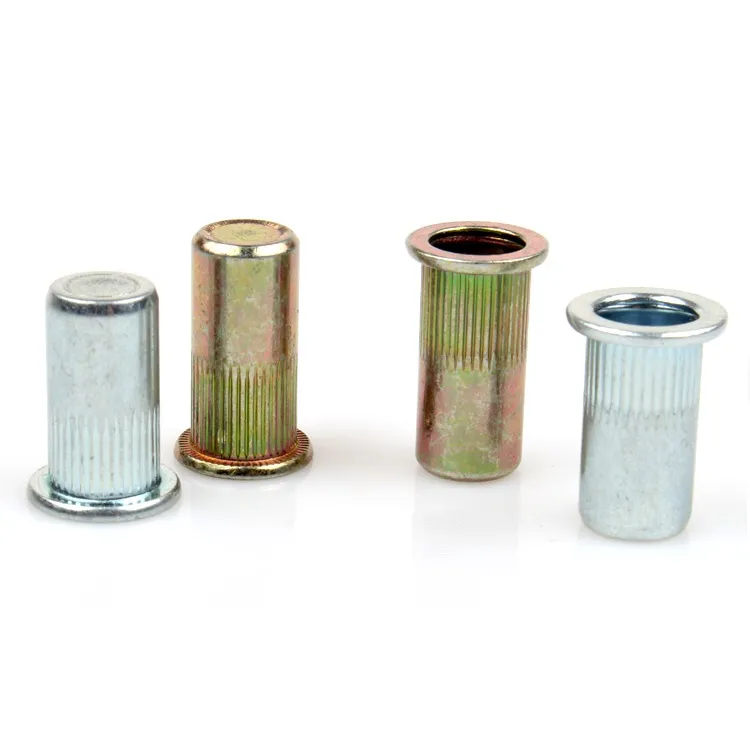

Rivet Nuts Flat Head Knurled Body Close End are a specific type of rivet nut designed for use in applications where a secure, permanent threaded insert is required in thin sheet materials such as metal, plastic, or composites. These rivet nuts have a flat head, a knurled body, and a closed end, each providing unique features that enhance performance and installation efficiency.
Key Features of Rivet Nuts Flat Head Knurled Body Close End:
*Rivet Nuts Flat Head Knurled Body Close End offer a secure, permanent threaded insert solution for thin materials, combining a flush surface, enhanced grip via knurling, and a closed-end design that prevents contamination and adds protection to the internal threads. They are ideal for use in applications requiring aesthetic finishes, low-profile installations, and sealed connections;
*Rivet Nuts Flat Head Knurled Body Close End made from carbon steel;
*Rivet Nuts Flat Head Knurled Body Close End commonly used in electronics, automotive, aerospace, and general manufacturing, these rivet nuts provide strong, reliable, and clean fastening solutions in various industries.
Part NO. | Thread Code | Grip Range-t | Length | Hole Size in Sheet | Nom Cap Diameter | Material Grade | Surface Finish | Quick Quote |
M4 | 0.5-2.0mm | 16mm | 6.0mm | 9.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M4 | 2.0-4.0mm | 18mm | 6.0mm | 9.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M5 | 0.5-3.0mm | 17mm | 7.0mm | 10.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M5 | 2.5-5.0mm | 19mm | 7.0mm | 10.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M6 | 0.5-3.0mm | 19.2mm | 9.0mm | 12.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M6 | 3.0-5.0mm | 21mm | 9.0mm | 12.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M8 | 0.5-3.0mm | 21.5mm | 11.0mm | 14.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M8 | 3.5-5.5mm | 24mm | 11.0mm | 14.5mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow | ||
M10 | 1.0-4.0mm | 27mm | 13.0mm | 17.0mm | ML08AL Carbon Steel | Zinc Clear/Zinc Yellow |
