Rivet Nuts Flat Head Inner-Hex Body FH-IHB-0525-ZI-ZC Metric Sizes

Category

Rivet Nuts are a type of fastener used to create a strong, threaded hole in thin or hollow materials,They are commonly used in applications where you need to attach components securely but cannot access both sides of the material to install a traditional bolt or nut:

  • Rivet nuts are hollow cylinders with internal threads on the inside, which allow a bolt or screw to be inserted into the threaded hole.
  • Rivet nuts flanges at the top (usually at one end) that help to prevent the nut from pulling through the material during installation.
  • The body of the rivet nuts deforms during installation, creating a permanent hold in the material.

Drawing

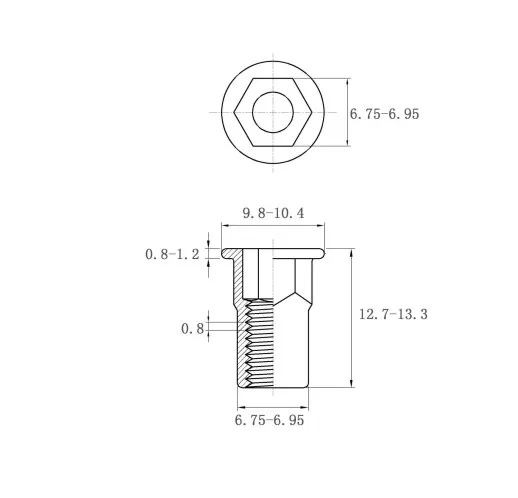

Rivet Nuts Flat Head Inner-Hex Body FH-IHB-0525-ZI-ZC Metric Sizes Drawing
Rivet Nuts Flat Head Inner-Hex Body FH-IHB-0525-ZI-ZC Metric Sizes Drawing

Specifications

Product Name:

Rivet Nuts Flat Head Inner-Hex Body FH-IHB

Product Code:

FH-IHB-0525-ZI

FH-IHB-0525-ZC

Measurement:

Metric

Material Grade:

ML08AL Carbon Steel

Surface Finish:

Zinc Clear/Zinc Yellow

Thread Code:

M5

Grip Range-t :

0.5-2.5mm

Refer Image:

Recommend Hole Size:

Nominal Size

7.0mm

s

Nominal Size

6.9mm

max

6.97mm

min

6.7mm

dk

Nominal Size

10.0mm

max

10.3mm

min

9.7mm

k

Nominal Size

1.0mm

max

1.2mm

min

0.8mm

L

Nominal Size

13mm

max

13.3mm

min

12.7mm
