Rivet Nuts are a type of fastener used to create a strong, threaded hole in thin or hollow materials,They are commonly used in applications where you need to attach components securely but cannot access both sides of the material to install a traditional bolt or nut:
Specifications | ||
Product Name: | Rivet Nuts Flat Head Knurled Body Close End FH-KBC | |
Product Code: | FH-KBC-0530-ZI FH-KBC-0530-ZC | |
Measurement: | Metric | |
Material Grade: | ML08AL Carbon Steel | |
Surface Finish: | Zinc Clear/Zinc Yellow | |
Thread Code: | M5 | |
Grip Range-t : | 0.5-3.0mm | |

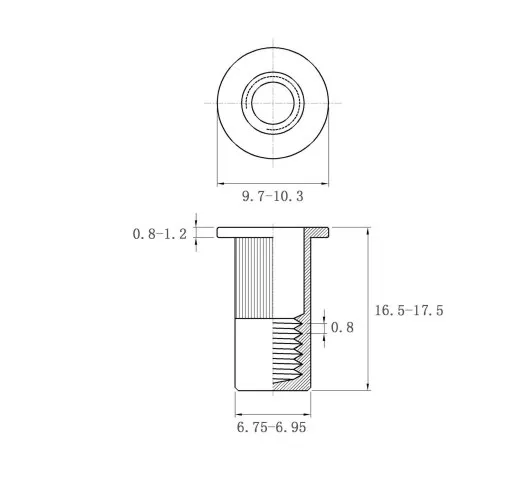

Refer Image: | ||
Recommend Hole Size: | Nominal Size | 7.0mm |
ds | Nominal Size | 6.9mm |
dc | Nominal Size | 10.0mm |
d1 | Nominal Size | 5.7mm |
k | Nominal Size | 1.0mm |
L | Nominal Size | 17mm |
