Rivet Nuts Flat Head Knurled Body FH-KB-0860(SS) Metric Sizes

Category

Rivet Nuts are a type of fastener used to create a strong, threaded hole in thin or hollow materials,They are commonly used in applications where you need to attach components securely but cannot access both sides of the material to install a traditional bolt or nut:

  • Rivet nuts are hollow cylinders with internal threads on the inside, which allow a bolt or screw to be inserted into the threaded hole.
  • Rivet nuts flanges at the top (usually at one end) that help to prevent the nut from pulling through the material during installation.
  • The body of the rivet nuts deforms during installation, creating a permanent hold in the material.

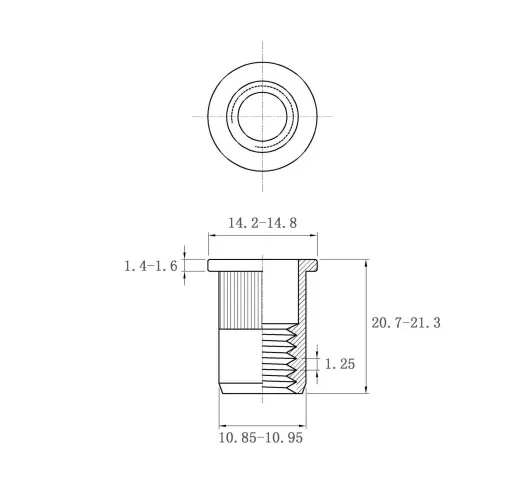

Drawing

Rivet Nuts Flat Head Knurled Body FH-KB-0860(SS) Metric Sizes
Rivet Nuts Flat Head Knurled Body FH-KB-0860(SS) Metric Sizes

Specifications

Product Name:

Rivet Nuts Flat Head Knurled Body FH-KB

Product Code:

FH-KB-0860(SS)

Measurement:

Metric

Material Grade:

304 Stainless Steel

Surface Finish:

Plain

Thread Code:

M8

Grip Range-t :

3.5-6.0mm

Refer Image:

Recommend Hole Size:

Nominal Size

11.0mm

ds

Nominal Size

10.9mm

dc

Nominal Size

14.5mm

d1

Nominal Size

9.6mm

k

Nominal Size

1.5mm

L

Nominal Size

21mm
