Self Clinching Nuts CLS-0624-2 Inch Sizes

Categories Clinch Nuts, Type CLS

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		CLS-0624-2
Measurement:		Inch
Material Grade:		304 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		3/8-24
Thread Pitch:		.375-24
Shank Code:		2
Recommended Hardness:		use in steel or aluminum sheets HRB 70 / HB125 or less.

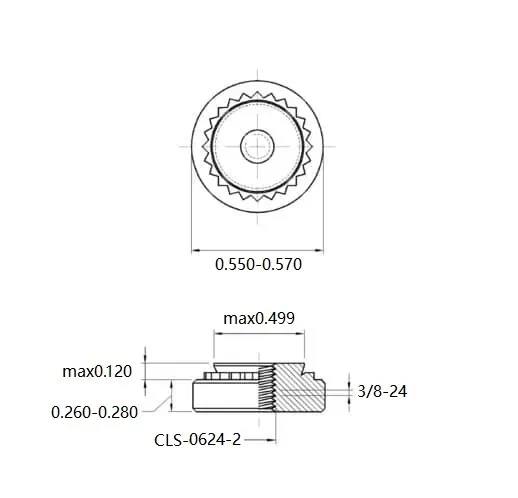

Refer Image:
Recommend Hole Size:	min=nominal size	0.500in
Recommend Hole Size:	max	0.503in
Sheet Thickness	min	0.125in
K1	max	0.120in
dc	max	0.499in
dk	Nominal Size	0.560in
	max	0.570in
	min	0.550in
k	Nominal Size	0.270in
	max	0.280in
	min	0.260in
