Self Clinching Nuts CLS-M3.5-0 Metric Sizes

Categories Clinch Nuts, Type CLS

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		CLS-M3.5-0
Measurement:		Metric
Material Grade:		304 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		M3.5
Thread Pitch:		0.6mm
Shank Code:		0
Recommended Hardness:		use in steel or aluminum sheets HRB 70 / HB125 or less.

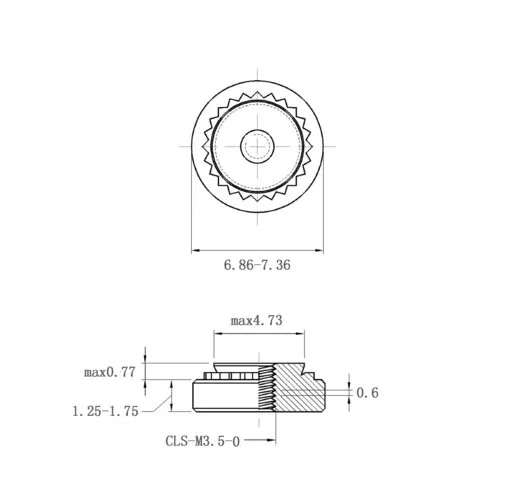

Refer Image:
Recommend Hole Size:	min=nominal size	4.75mm
Recommend Hole Size:	max	4.83mm
Sheet Thickness	min	0.8mm
K1	max	0.77mm
dc	max	4.73mm
dk	Nominal Size	7.11mm
	max	7.36mm
	min	6.86mm
k	Nominal Size	1.5mm
	max	1.75mm
	min	1.25mm
