Self Clinching Nuts CLS-M5-0 Metric Sizes

Categories ,

Self-clinching nuts are a type of fastener that are pressed into the base material:

  • Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
  • Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
  • Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Drawing

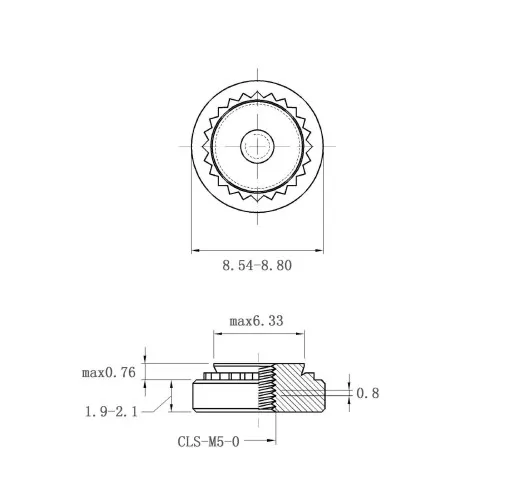

Self Clinching Nuts CLS-M5-0 Metric Sizes Drawing
Self Clinching Nuts CLS-M5-0 Metric Sizes Drawing

Specifications


Product Name:

Self-Clinching Nuts/Clinch Nuts/Press Nuts

Product Code:

CLS-M5-0

Measurement:

Metric

Material Grade:

304 Stainless Steel

Surface Finish:

Plain, Passivated

Thread Code:

M5

Thread Pitch:

0.8mm

Shank Code:

0

Recommended Hardness:

 use in steel or aluminum sheets HRB 70 / HB125 or less.

Refer Image:

Recommend Hole Size:

min=nominal size

6.35mm

max

6.43mm

Sheet Thickness

min

0.8mm

K1

max

0.77mm

dc

max

6.33mm

dk

Nominal Size

8.64mm

max

8.89mm

min

8.39mm

k

Nominal Size

2mm

max

2.25mm

min

1.75mm
