Self Clinching Nuts Flare-In Nuts NZ-M5-4.0 Metric Sizes

Categories Clinch Nuts, Type NZ

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts NZ/Rise Rivet Nuts/Flare-In Nuts
Product Code：		NZ-M5-4.0
Measurement:		Metric
Material Grade:		1008/10B21
Surface Finish:		Zinc Clear
Thread Code:		M5
Thread Pitch:		0.8mm
Shank Code:		4.0

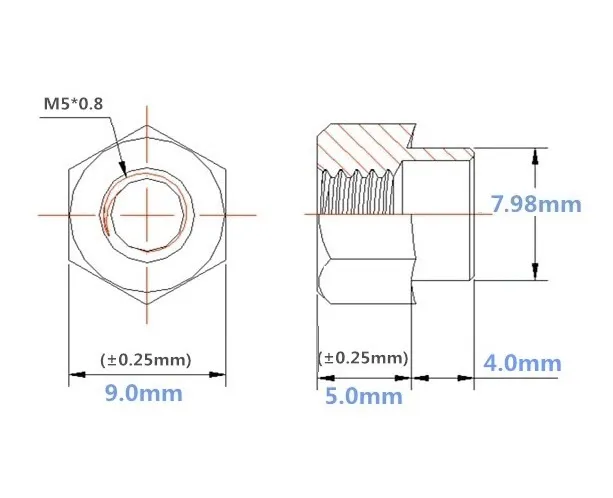

Refer Image:
Recommend Hole Size:	min=nominal size	8.0mm
	max	8.08mm
Sheet Thickness	min	4.0mm
K1	max	4.0mm
dk	max	7.98mm
k	Nominal Size	5.0mm
	max	5.25mm
	min	4.75mm
S	Nominal Size	9mm
	max	9.25mm
	min	8.75mm
