Self Clinching Nuts Flare-In Nuts NZS-M8-4.0 Metric Sizes

Categories Clinch Nuts, Type NZS

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts NZS/Rise Rivet Nuts/Flare-In Nuts
Product Code：		NZS-M8-4.0
Measurement:		Metric
Material Grade:		304 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		M8
Thread Pitch:		1.25mm
Shank Code:		4.0

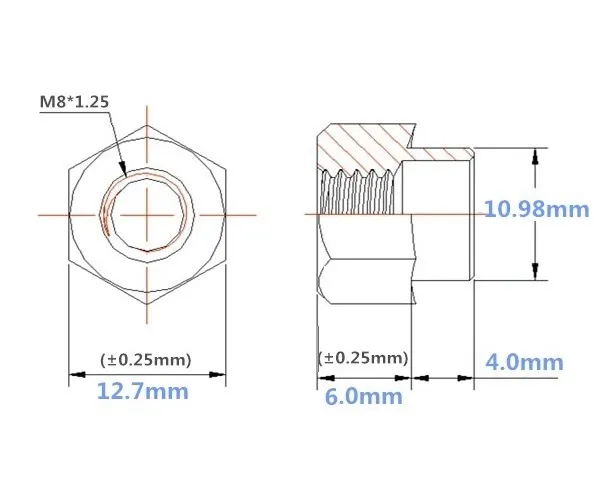

Refer Image:
Recommend Hole Size:	min=nominal size	11.0mm
	max	11.08mm
Sheet Thickness	min	4.0mm
K1	max	4.0mm
dk	max	10.98mm
k	Nominal Size	6.0mm
	max	6.25mm
	min	5.75mm
S	Nominal Size	12.7mm
	max	12.95mm
	min	12.45mm
