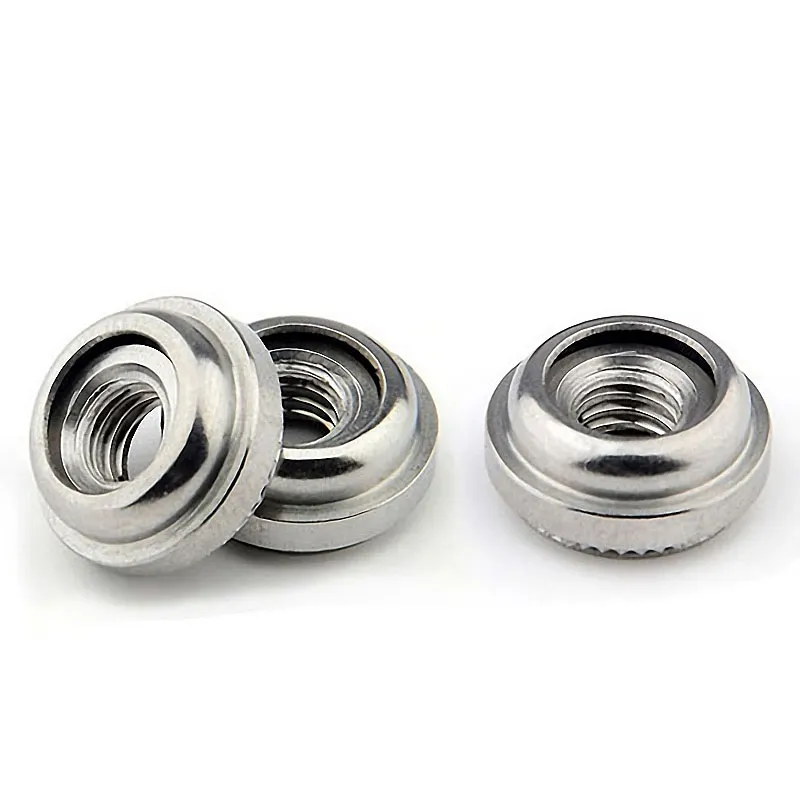

Self Clinching Nuts Floating Nuts Non-Locking A4-M4-1 Metric Sizes

Categories Clinch Nuts, Type A4

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts AS/Floating Nuts
Product Code：		A4-M4-1
Measurement:		Metric
Material Grade:		410 Stainless Steel
Surface Finish:		Passivated
Thread Code:		M4
Thread Pitch:		0.7mm
Shank Code:		1

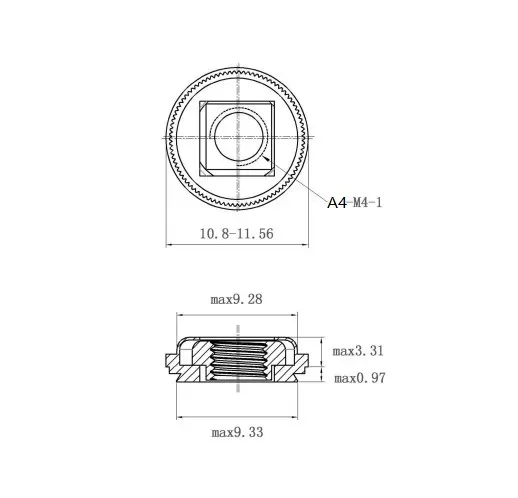

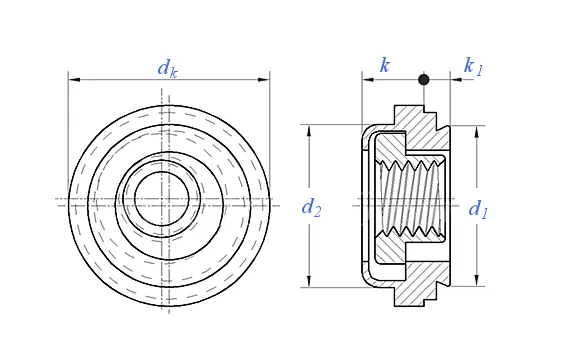

Refer Image:
Recommend Hole Size:	min=nominal size	9.35mm
	max	9.43mm
Sheet Thickness	min	0.97mm
K1	max	0.97mm
k	max	3.31mm
d1	max	9.33mm
d2	max	9.28mm
dk	Nominal Size	11.18mm
	max	11.56mm
	min	10.8mm
