Self Clinching Nuts Floating Nuts Non-Locking AC-M3-2 Metric Sizes

Categories Clinch Nuts, Type AC

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts AS/Floating Nuts
Product Code：		AC-M3-2
Measurement:		Metric
Material Grade:		303 Stainless Steel
Surface Finish:		Passivated
Thread Code:		M3
Thread Pitch:		0.5mm
Shank Code:		2

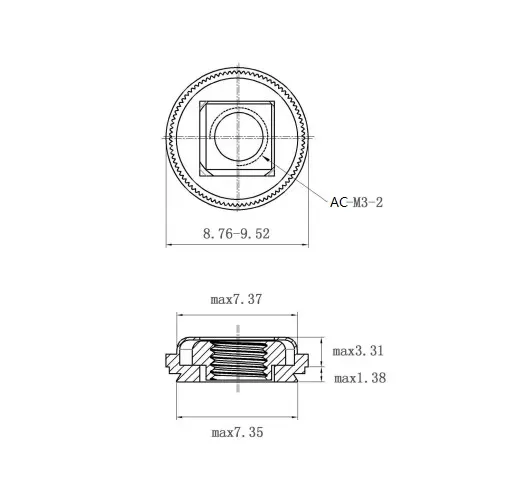

Refer Image:
Recommend Hole Size:	min=nominal size	7.37mm
	max	7.45mm
Sheet Thickness	min	1.38mm
K1	max	1.38mm
k	max	3.31mm
d1	max	7.35mm
d2	max	7.37mm
dk	Nominal Size	9.14mm
	max	9.52mm
	min	8.76mm
