Self Clinching Nuts Floating Nuts Non-Locking AS-M5-2 Metric Sizes

Categories Clinch Nuts, Type AS

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts AS/Floating Nuts
Product Code：		AS-M5-2
Measurement:		Metric
Material Grade:		1215
Surface Finish:		Zinc Clear
Thread Code:		M5
Thread Pitch:		0.8mm
Shank Code:		2

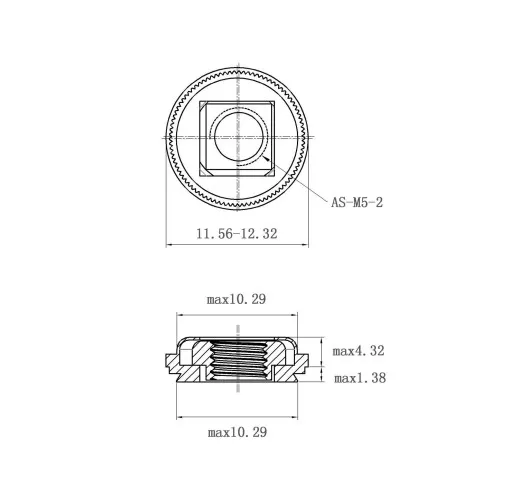

Refer Image:
Recommend Hole Size:	min=nominal size	10.31mm
	max	10.39mm
Sheet Thickness	min	1.38mm
K1	max	1.38mm
k	max	4.32mm
d1	max	10.29mm
d2	max	10.29mm
dk	Nominal Size	11.94mm
	max	12.32mm
	min	11.56mm
