Self Clinching Nuts S-032-0-ZI-ZC-ZB-ZU Inch Sizes

Categories Clinch Nuts, Type S

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		S-032-0-ZI S-032-0-ZC S-032-0-ZB S-032-0-ZU
Measurement:		Inch
Material Grade:		10B21 Carbon Steel
Surface Finish:		Zinc Clear/Zinc Yellow/Zinc Black/Zinc Blue
Thread Code:		#10-32
Thread Pitch:		.190-32
Shank Code:		0
Recommended Hardness:		use in steel or aluminum sheets HRB 80 / HB150 or less.

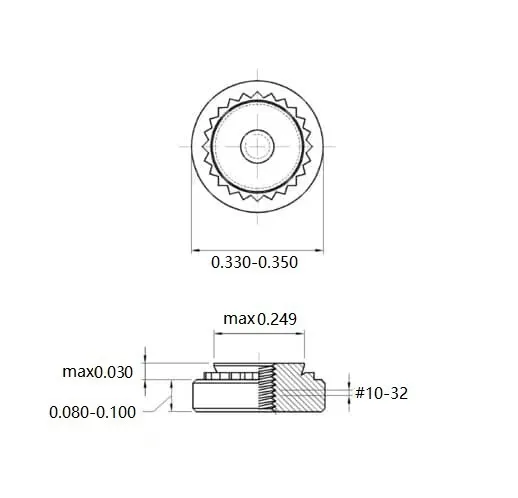

Refer Image:
Recommend Hole Size:	min=nominal size	0.250in
Recommend Hole Size:	max	0.253in
Sheet Thickness	min	0.030in
K1	max	0.030in
dc	max	0.249in
dk	Nominal Size	0.340in
	max	0.350in
	min	0.330in
k	Nominal Size	0.090in
	max	0.100in
	min	0.080in
