Self Clinching Nuts S-M12-2-ZI-ZC-ZB-ZU Metric Sizes

Categories Clinch Nuts, Type S

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		S-M12-2-ZI S-M12-2-ZC S-M12-2-ZB S-M12-2-ZU
Measurement:		Metric
Material Grade:		10B21 Carbon Steel
Surface Finish:		Zinc Clear/Zinc Yellow/Zinc Black/Zinc Blue
Thread Code:		M12
Thread Pitch:		1.75mm
Shank Code:		2
Recommended Hardness:		use in steel or aluminum sheets HRB 80 / HB150 or less.

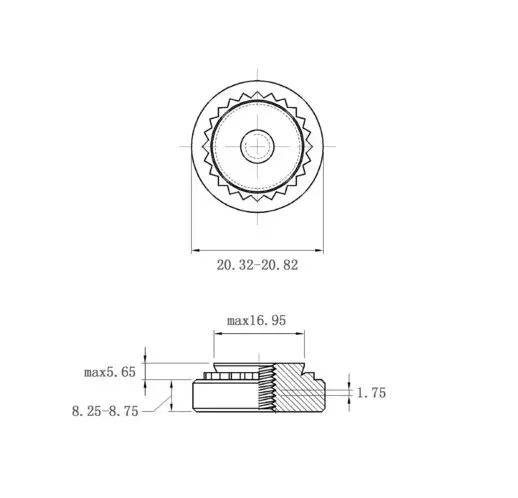

Refer Image:
Recommend Hole Size:	min=nominal size	17mm
Recommend Hole Size:	max	17.08mm
Sheet Thickness	min	5.78mm
K1	max	5.65mm
dc	max	16.95mm
dk	Nominal Size	20.57mm
	max	20.82mm
	min	20.32mm
k	Nominal Size	8.5mm
	max	8.75mm
	min	8.25mm
