Self Clinching Nuts SP-0518-2 Inch Sizes

Categories Clinch Nuts, Type SP

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		SP-0518-2
Measurement:		Inch
Material Grade:		410 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		5/16-18
Thread Pitch:		.313-18
Shank Code:		2
Recommended Hardness:		use in steel or aluminum sheets HRB 90 / HB192 or less.

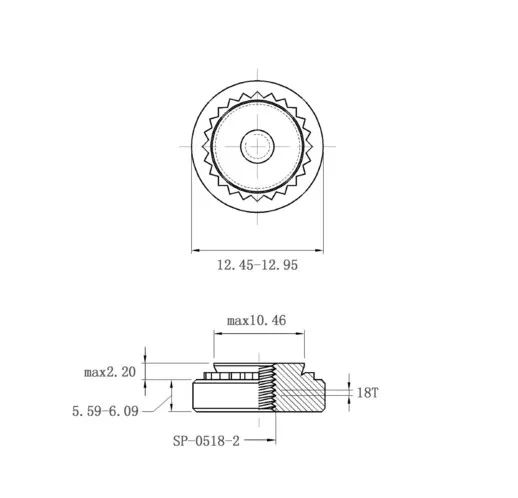

Refer Image:
Recommend Hole Size:	min=nominal size	0.413in
Recommend Hole Size:	max	0.416in
Sheet Thickness	min	0.090in
K1	max	0.087in
dc	max	0.412in
dk	Nominal Size	0.500in
	max	0.510in
	min	0.490in
k	Nominal Size	0.230in
	max	0.240in
	min	0.220in
