Self Clinching Nuts SP-440-2 Inch Sizes

Categories Clinch Nuts, Type SP

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		SP-440-2
Measurement:		Inch
Material Grade:		410 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		#4-40
Thread Pitch:		.112-40
Shank Code:		2
Recommended Hardness:		use in steel or aluminum sheets HRB 90 / HB192 or less.

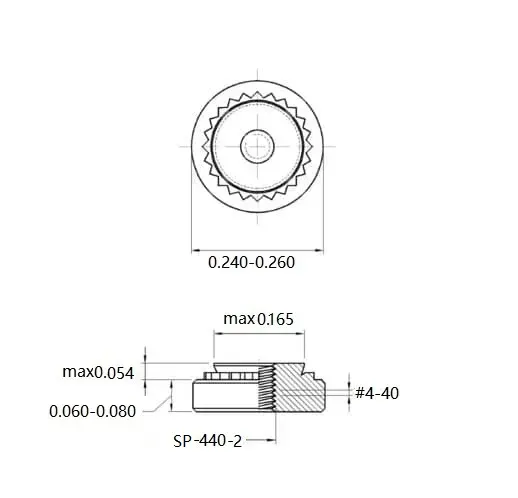

Refer Image:
Recommend Hole Size:	min=nominal size	0.166in
Recommend Hole Size:	max	0.169in
Sheet Thickness	min	0.056in
K1	max	0.054in
dc	max	0.165in
dk	Nominal Size	0.250in
	max	0.260in
	min	0.240in
k	Nominal Size	0.070in
	max	0.080in
	min	0.060in
