Self Clinching Nuts SP-M10-2 Metric Sizes

Categories Clinch Nuts, Type SP

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		SP-M10-2
Measurement:		Metric
Material Grade:		410 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		M10
Thread Pitch:		1.5mm
Shank Code:		2
Recommended Hardness:		use in steel or aluminum sheets HRB 90 / HB192 or less.

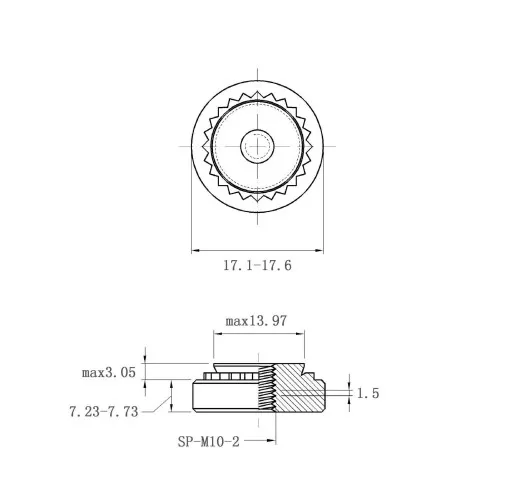

Refer Image:
Recommend Hole Size:	min=nominal size	14mm
Recommend Hole Size:	max	14.08mm
Sheet Thickness	min	3.18mm
K1	max	3.05mm
dc	max	13.97mm
dk	Nominal Size	17.35mm
	max	17.6mm
	min	17.1mm
k	Nominal Size	7.48mm
	max	7.73mm
	min	7.23mm
