Self Clinching Nuts SP-M4-0 Metric Sizes

Categories Clinch Nuts, Type SP

Self-clinching nuts are a type of fastener that are pressed into the base material:

Self-clinching nuts can be installed in very thick base material, and they can be installed almost flush with the base material
Self-clinching nuts installation doesn’t require a specific installation tool, and an arbor press can be used.
Self-clinching nuts are more versatile and can be used with different material geometries compared to rivet nuts

Specifications
Product Name:		Self-Clinching Nuts/Clinch Nuts/Press Nuts
Product Code：		SP-M4-0
Measurement:		Metric
Material Grade:		410 Stainless Steel
Surface Finish:		Plain, Passivated
Thread Code:		M4
Thread Pitch:		0.7mm
Shank Code:		0
Recommended Hardness:		use in steel or aluminum sheets HRB 90 / HB192 or less.

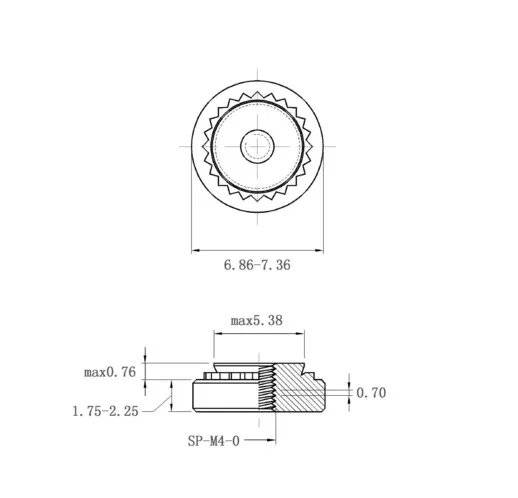

Refer Image:
Recommend Hole Size:	min=nominal size	5.41mm
Recommend Hole Size:	max	5.49mm
Sheet Thickness	min	0.8mm
K1	max	0.77mm
dc	max	5.38mm
dk	Nominal Size	7.87mm
	max	8.12mm
	min	7.62mm
k	Nominal Size	2mm
	max	2.25mm
	min	1.75mm
